| Standard | DIN30670,CAN/CSA-Z245.21, NFA 49-710, ISO DIS21809-1 |
|---|---|
| Size | DN50-DN2200 |
| Surface | Layer 1 Epoxy Powder ≥80um, Layer 2 Adhesive:170-250um, Layer 3 Polyethylene: 1.8-3.7mm |
| Product: | 3PE Coating Pipe, 3PE Anticorrosive Pipe,3PE Coated Steel Pipe |
| Application: | Widely used in high surface temperature, according to the region, longer underground water, gas, oil pipelines, and Coal mines, heat and power plants, oil and gas transmission. |
| Standard: | DIN30670,CAN/CSA-Z245.21, NFA 49-710, ISO DIS21809-1 |
| Size: | DN50-DN2200 |
| Coating Layer: | Layer 1 Epoxy Powder ≥80um |
| Layer 2 Adhesive:170-250um | |
| Layer 3 Polyethylene: 1.8-3.7mm | |
| Packing: | in bundles, in loose, Nylon Strip for each bundle for piece pipe |

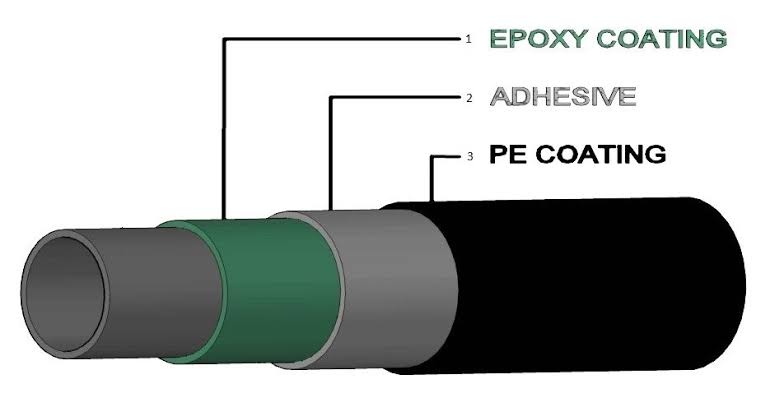

1. Epoxy primer coating.The first layer with epoxy powder (FBE> 100um). Directly coated at the pipe surface. Ensure the overall coating has good adhesion at higher temperatures.
2 . Copolymer adhesive. Main component for this layer is a polyolefin. The thickness of the adhesive ranges from 170um to 250um.To make sure the top anti-corrosion coating is adhesive at the primer coating and also on the pipe surface.
3 . Anti-corrosion Coating (PE layer). The top layer is extruded polyethylene; the thickness of this layer is from 2.5 mm to 3.7 mm. It is polyethylene, which has advantages in anti-water, electrical resistance, and anti-mechanical damage. It is a very important layer.
ANSI/AWWA C104/A21.4 American National Standard for Cement
ISO 21809 Petroleum and natural gas industries
DIN 30670 Polyethylen coatings of steel pipes and fittings
Due to the characteristics and advantages of the 3PE coated pipe, it is widely used in many kinds of applications such as oil & gas, water transmission, heat transmission, mining, fire-fighting, thermal power station, electric power, communication facilities, highway, chemical pharmaceutical, printing and dyeing, and agricultural applications.
And with its further development, the 3PE-coated pipe will play a more and more important role in global development.
3PE Coating Steel Pipes are an excellent solution for customers looking for an anti-corrosion pipeline that can withstand harsh environments.
The three-layer polyethylene coating provides excellent protection against corrosion, making our steel pipes durable and reliable.
This technology has been proven to extend the lifespan of steel pipes, making it a cost-effective solution in the long run.
Additionally, the 3PE coating provides superior insulation and reduces energy loss, making it an ideal choice for transporting fluids in extreme temperatures.
Our steel pipes are compatible with a wide range of fluids, making them versatile and convenient for various applications. Trust our experienced team to provide you with the reliable, high-quality steel pipes you need.
