In large-diameter, high-pressure fluid transmission projects, the structural integrity of the longitudinal seam is not just a technical detail—it is a critical safety requirement. LSAW (Longitudinal Submerged Arc Welded) steel pipes, specifically those manufactured via the JCOE process, are the gold standard for demanding environments such as deep-sea pipelines, high-pressure gas mains, and heavy-duty piling.
At JS FITTINGS, we specialize in providing API 5L certified LSAW steel pipe solutions that bridge the gap between rigorous engineering specs and cost-effective project execution.

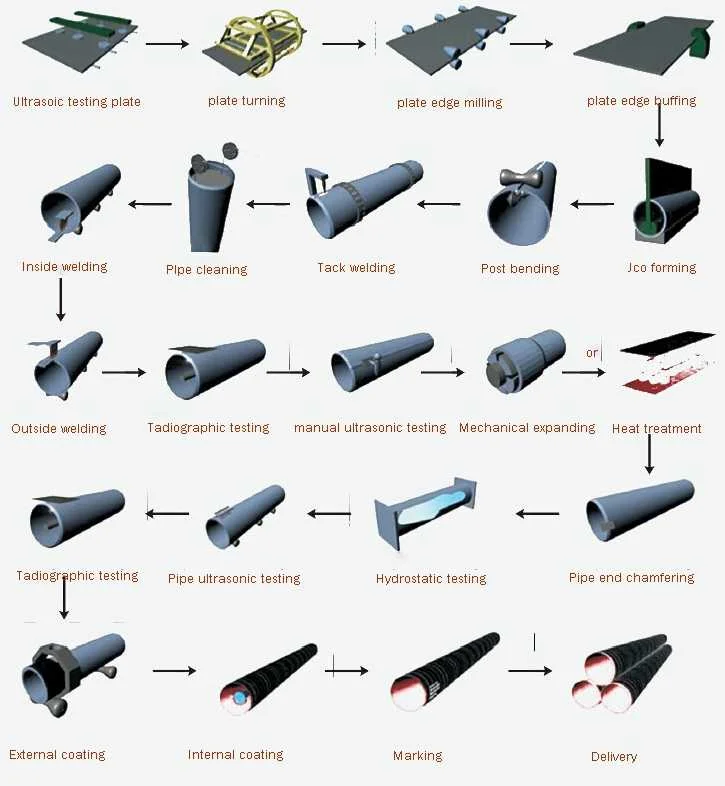

The JCOE Manufacturing Process: Why Precision Matters
The superior performance of LSAW pipes compared to SSAW (Spiral) lies in the JCOE manufacturing method. This process ensures the pipe has lower residual stress and higher dimensional accuracy.
Step-by-Step Engineering Excellence:
- Plate Ultrasonic Testing: 100% UT inspection of the steel plate before forming.
- J-C-O Forming: The plate is progressively pressed into a “J” shape, then a “C” shape, and finally an “O” shape.
- Pre-Welding & Internal/External Welding: Utilizing multi-wire submerged arc welding for deep penetration and defect-free seams.
- Mechanical Cold Expansion (Critical Step): Unlike cheaper alternatives, our LSAW pipes undergo mechanical cold expansion. This eliminates internal welding stress and ensures the outside diameter (OD) and wall thickness (WT) tolerances are within ±0.5%.
Technical Specifications: API 5L LSAW Pipe
| Parameter | Specification Range |
| Outside Diameter (OD) | 16″ (406mm) – 60″ (1524mm) |
| Wall Thickness (WT) | 6.0mm – 50.0mm (Specialized for heavy-wall requirements) |
| Material Grades | API 5L B to X80 (PSL1 & PSL2), ASTM A672, ASTM A252 |
| Length | 6m – 12.5m (Customized lengths available) |
| Certification | API 5L, ISO 9001:2015, CE, PED |
Critical Comparison: LSAW vs. SSAW pipes for High-Pressure Projects
One of the most frequent questions from our procurement partners is: “Can I substitute LSAW with SSAW to save costs?”
For High-Pressure Gas (Grade X65/X70) or Offshore Piling, the answer is usually No. Here’s why:
- Weld Seam Length: LSAW has a much shorter weld seam (longitudinal) compared to the spiral seam of SSAW. A shorter seam means a lower probability of defects.
- Stress Distribution: The expansion process in LSAW production ensures uniform stress distribution, which is vital for pipelines subject to temperature fluctuations and seismic activity.
- Wall Thickness Capability: LSAW can achieve thicknesses up to 50mm, whereas SSAW is typically limited to 25mm.
More differences between LSAW VS SSAW Vs ERW Pipe, please click here.
Case Study: Offshore Gas Pipeline Project
The Challenge: A Tier-1 energy contractor required 15km of 48-inch (1219mm) LSAW pipes for a subsea tie-back. The project demanded API 5L X70 PSL2 grade with strict Sour Service (HIC/SSCC) requirements to withstand corrosive underwater environments.
The Solution: JS FITTINGS supplied JCOE-formed LSAW pipes with customized chemical compositions (low Sulfur and low Phosphorus). We implemented 100% Radiographic Testing (RT) and Ultrasonic Testing (UT) for every joint.
The Result: The project was completed 15 days ahead of schedule. Our precision in pipe-end beveling reduced on-site welding time by 20%, significantly lowering the client’s offshore installation costs.
Addressing B2B Pain Points: FAQ for Pipeline Engineers
Q1: How do you ensure the weld seam won’t fail under high-pressure hydro-testing?
Solution: Every pipe we produce undergoes a hydrostatic test at 1.5x the working pressure for a minimum of 10 seconds. This is followed by automated UT inspection of the weld seam after the hydro-test to ensure no stress-induced micro-cracks have formed.
Q2: Can you handle internal and external anti-corrosion coatings?
Solution: Yes. We provide integrated coating services including 3LPE, 3LPP, FBE (Fusion Bonded Epoxy), and internal liquid epoxy lining to AWWA C210 standards. This “One-Stop” approach reduces logistics risks and ensures coating integrity.
Q3: What third-party inspections (TPI) do you support?
Solution: We regularly work with SGS, BV, Moody, and DNV. We encourage TPI at every stage—from raw plate inspection to final loading at the port.
Why Partner with JS FITTINGS?
As a dedicated LSAW steel pipe manufacturer, JS FITTINGS understands that reliability is your primary currency. We offer:
- Competitive Mill-Direct Pricing: No middleman markups on large-scale infrastructure orders.
- Strict Compliance: Full traceability of Mill Test Certificates (MTC) to EN 10204 3.1/3.2.
- Strategic Export Logistics: Proximity to major shipping ports for reduced transit times.
Get a Technical Quote Today
Whether you are designing a cross-country oil line or a bridge piling project, our technical team is ready to review your Data Sheets.
