In buried and industrial piping, coating failure directly leads to pipeline corrosion, expensive field repairs, or scrap inventory. While 3-Layer Polyethylene (3PE / 3LPE) and Fusion Bonded Epoxy (FBE) are the two most specified anti-corrosion systems for API 5L and ASTM line pipes, their operational boundaries and cost structures differ sharply.
- 3PE is a heavy mechanical barrier designed for buried cross-country lines exposed to rocky soil, rough transport, and long yard storage.
- FBE is a high-adhesion, thin-film thermoset coating engineered for chemical plant piping, subsea applications, and high-temperature service where cathodic protection (CP) transparency is paramount.

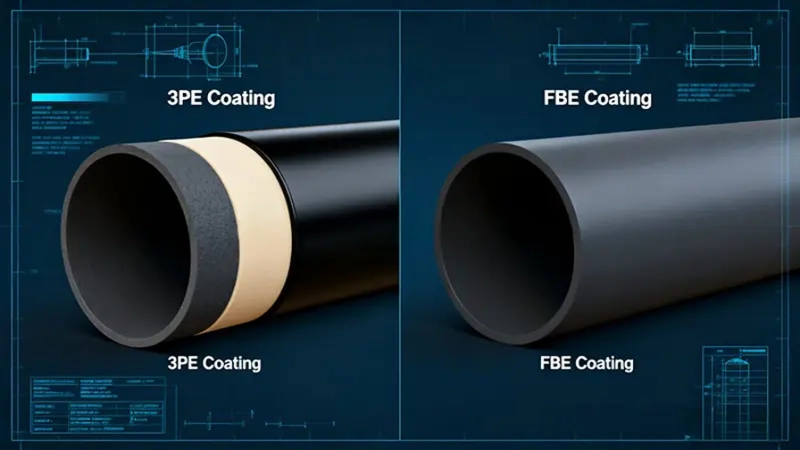

1. Structural Breakdown
- FBE (ISO 21809-2 / AWWA C213): Applied electrostatically to steel preheated to ~200°C–230°C. It forms a dense, cross-linked chemical bond with the substrate. Thickness: 350–500 µm (14–20 mils).
- 3PE (ISO 21809-1 / DIN 30670): Combines the chemical adhesion of an FBE primer with the toughness of a thick High-Density Polyethylene (HDPE) outer sleeve. Thickness: 1.8–3.7 mm (70–145 mils) depending on pipe OD.
2. Head-to-Head Engineering Comparison
| Parameter | 3PE (Three-Layer Polyethylene) | FBE (Fusion Bonded Epoxy) |
| Primary Mechanism | Dual: Chemical corrosion barrier + Outer physical shield | Direct high-adhesion chemical barrier |
| Impact & Rock Gouging | Extreme. Absorbs backfill impacts; no sand bedding required | Low to Moderate. Brittle; risks micro-cracks without rock shield |
| Cathodic Disbondment | Good, but risks CP current shielding if water breaches the jacket | Superior. Industry standard; zero CP current shielding |
| Max Operating Temp. | Standard: +60°C to +80°C (Switch to 3LPP if >100°C) | Standard: +80°C to +110°C (Resin-grade dependent) |
| Open-Yard UV Stability | 24–36+ months. Carbon black HDPE prevents degradation | 6–12 months. Chalks and degrades under prolonged sun |
| Ocean Transit Risk | Low. Outer PE absorbs dunnage chafing and sling wear | Moderate. Requires padded slings; prone to transit pinholes |
| Field Joint Method | Heat Shrinkable Sleeves (HSS) or Visco-elastic tapes | Field-applied liquid epoxy or induction-heated field FBE |
| Coating Cost | Higher initial cost (materials + multi-stage application) | Lower initial cost (single-pass powder application) |

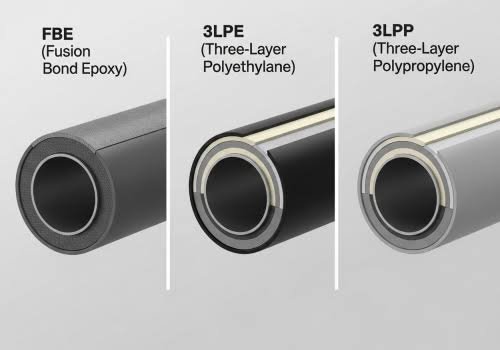

3. How to Choose the Best Anti-Corrosion Coating for Your Steel Pipes?
Buried Oil, Gas & Water Transmission (Cross-Country)
- Standard Choice: 3PE. Long-distance trunklines face severe handling, multi-port shipping, and unselected native backfill. The HDPE jacket eliminates trench bedding costs and resists soil stress caused by seasonal ground movement.
Refinery, Compressor Stations & Process Plants
- Standard Choice: FBE. Operating temperatures in plant utility and hydrocarbon lines often exceed 80°C, surpassing 3PE limits. FBE’s thin profile allows easy fit-up to complex bends, flanges, and structural racks.
Horizontal Directional Drilling (HDD) & River Crossings
- Standard Choice: Dual-Layer FBE (ARO) or 3LPP. Standard FBE gouges under high-friction pulls, while 3PE risks jacket peeling under shear loads. A dual-layer FBE with an Abrasion-Resistant Overcoat (ARO) provides the necessary shear bond.
Open Yard Stocking (Distributor Inventory)
- Standard Choice: 3PE. For stockists holding speculative inventory, FBE degrades under prolonged sunlight. 3PE inventory can sit in open outdoor yards for years without recoating penalties.
4. RFQ Technical Checklist
To obtain an accurate mill price and avoid technical clarifications, your RFQ must specify:
- Pipe Substrate: Standard, Grade, OD, Wall Thickness, and Length (e.g., API 5L Gr. B PSL2, 12″ SCH 40, DRL 11.8m).
- Coating Standard: ISO 21809-1 (Class A/B/C for 3PE) or ISO 21809-2 (for FBE); DIN 30670.
- Coating Thickness: Standard, Reinforced, or customer-defined minimum total thickness.
- End Preparation: Standard cutback length (typically 100 mm to 150 mm bare steel for field welding) and bevel angle (
30∘/37.5∘30∘/37.5∘). - Testing Scope: 100% Online Holiday Detection voltage (
5 kV/mm5 kV/mmfor PE), Peel Strength test values, and EN 10204 3.1 MTC.
5. JS FITTINGS Supply Capabilities
Hebei Jinsheng Pipe Fitting Manufacturing Co., Ltd. (JS FITTINGS) supplies certified bare and coated steel pipes for international oil, gas, and civil contractors.
- Pipe Range: Seamless, ERW, LSAW, SSAW steel pipes (1/2” to 60” / DN15 to DN1500).
- Base Materials: API 5L (Gr. B to X70 PSL1/PSL2), ASTM A106 Gr. B, ASTM A53.
- Coating Plants: Automated 3PE, 3LPP, Single/Dual-Layer FBE, Internal Liquid Epoxy (AWWA C210).
- Quality Assurance: Full traceability, mill hydrostatic testing, online holiday inspection, and third-party inspection (SGS/BV/TUV) accepted.
