What is Fusion Bonded Epoxy (FBE) Coating?

PBE Coated Steel Pipe

内容目录

In critical industries, the integrity of a steel pipeline is non-negotiable. These pipeline transport everything from oil and gas to clean water, forming the backbone of our infrastructure. Yet, they face a relentless and costly enemy: corrosion.
The gradual decay of metal can lead to catastrophic failures, environmental damage, and staggering financial losses. While various methods exist to combat this threat, one solution stands out for its durability and reliability: Fusion Bonded Epoxy (FBE) coating.
This comprehensive guide explores the what, why, and how of FBE coating.

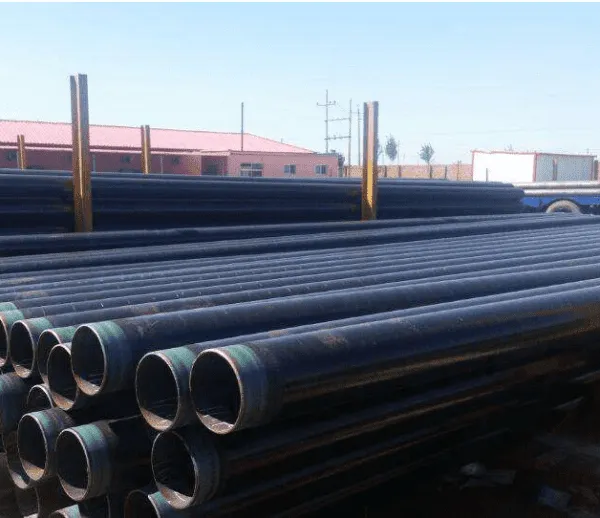

FBE Coating steel pipe for gas oil

What is Fusion Bonded Epoxy (FBE) Coating?


Fusion Bonded Epoxy is a high-performance, thermoset powder coating applied to steel pipes, valves, and pipe fittings to provide exceptional protection. Unlike a simple layer of paint, an FBE coating is chemically fused to the steel’s surface, creating an incredibly tough, uniform, and impenetrable barrier. This process, often referred to as “powder coating,” results in a coating that doesn’t just sit on top of the steel—it becomes an integral part of it.
Applied to both the interior and exterior surfaces, FBE is the benchmark for corrosion prevention in demanding sectors like oil and gas, wastewater management, and municipal water systems.

When is FBE Coating an Absolute Necessity?


FBE coating isn’t just a preventative measure; it’s a strategic necessity for pipelines operating in hostile conditions where failure is not an option.


Harsh Environmental Exposure:

FBE is the first line of defense for pipelines exposed to saltwater, aggressive chemicals, industrial effluents, and other corrosive materials. Its robust chemical structure withstands attack from substances that would quickly degrade lesser coatings.


Underground and Subsea Applications:

When a pipe is buried, it’s subjected to constant corrosive pressure from soil minerals, moisture, and stray electrical currents. FBE creates a durable shield that isolates the steel from these elements, preventing unseen degradation and ensuring long-term reliability.


Enhanced Performance and Flow:

Beyond protection, an FBE-coated interior offers a smooth, low-friction surface. This significantly improves the flow efficiency of fluids and gases, reducing turbulence and lowering the energy costs associated with pumping.


Abrasion and Impact Resistance:

The fusion bonding process creates a coating that is highly resistant to abrasion and impact, protecting the pipe during transportation, installation, and operation.
Furthermore, FBE coating is an environmentally responsible choice. The application process involves no volatile organic compounds (VOCs), making it a clean and sustainable method for asset protection.

How FBE Creates an Unbreakable Bond?


The remarkable performance of FBE is a direct result of its meticulous application process, which transforms a fine powder into a rock-solid protective layer.


Surface Preparation:

The process begins with thoroughly cleaning the pipe surface, typically through abrasive blasting. This removes all rust, scale, and contaminants, creating a clean, profiled surface that is primed for maximum adhesion.


Induction Heating:

The pipe is then heated to a precise temperature, typically between 350-500° F (175-260° C). This heat is the catalyst for the fusion process.


Electrostatic Powder Application:

The epoxy powder is given an electrical charge and sprayed onto the heated, grounded pipe. The charge causes the powder to be drawn to the steel surface, wrapping around it evenly and completely.


Melting and Curing:

Upon contact with the hot pipe, the powder instantly melts, flows into a liquid film, and penetrates the surface profile. The heat triggers a chemical reaction (cross-linking) that cures the epoxy, bonding it permanently to the steel.
The result is an irreversible, “thermoset” coating. Once cured, it will not melt or return to its powder form, even under extreme operational temperatures, guaranteeing a stable and long-lasting shield.

Alternatives to FBE Coating


While FBE is a top-tier solution, other coating systems are available, each suited for different applications:


3-Layer Polyethylene (3LPE) Coating:

This system combines the corrosion protection of an epoxy layer with the rugged mechanical protection of polyethylene, making it ideal for pipelines that require extreme physical durability.


Polyurethane (PU) Coating:

Known for its excellent abrasion resistance and flexibility, PU is often used in slurry lines or for protecting pipes against mechanical damage.


Coal Tar Enamel (CTE) Coating:

A traditional, thick-film coating that offers good water resistance, though it has been largely superseded by more advanced polymer technologies like FBE.


Zinc Coating (Galvanizing):

This method provides sacrificial protection, where the zinc corrodes in place of the steel. It is effective but may not be suitable for highly acidic or alkaline environments.

The optimal choice depends on a range of factors, including the fluid being transported, the operating environment, and the project budget. Consulting with a corrosion specialist is always recommended to select the perfect solution for your specific needs.

Ultimately, FBE coating is more than just a protective layer; it’s an investment in the long-term viability and safety of your piping infrastructure. By creating a powerful defense against corrosion, abrasion, and chemical attack, FBE extends the life of your assets, minimizes the need for costly repairs, and ensures your systems operate reliably for decades. For industries where durability is paramount, FBE remains the proven and trusted choice.

Rayoung offers high-quality FBE coating steel pipes for your industry projects, please contact us if you have any questions.
