Why is 3LPE the global standard for buried pipelines?
Unlike single-layer coatings, 3LPE solves the two biggest threats to buried pipelines: corrosion and physical impact. It works through a 3-layer synergy:
- Epoxy (Internal): Bonds chemically to the steel to stop rust and chemical corrosion.
- Adhesive (Middle): Ensures the outer layers never peel off.
- Polyethylene (External): Provides a tough, plastic shell that resists rocks, soil stress, and moisture.

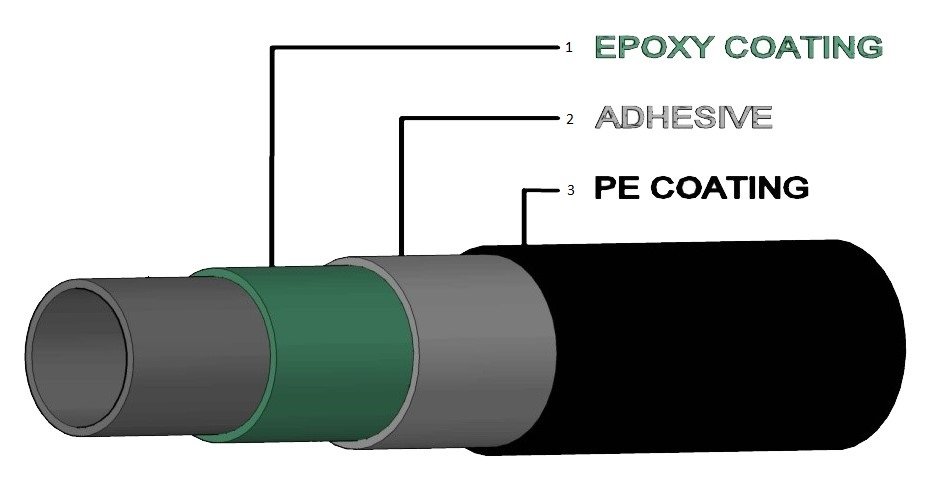

Technical Architecture: The Three Layers Explained
3LPE coating is the global standard for buried pipelines because it provides the ultimate “double-shield” for underground steel pipes. 3LPE coating is more than just “plastic-covered pipe.” It is a composite system where each layer serves a distinct functional purpose:
- Layer 1: High-Performance Fusion Bonded Epoxy (FBE).
Directly bonded to the blasted steel surface, this layer provides exceptional resistance to cathodic disbondment and chemical corrosion. It is the primary “defense” line against oxidation.
- Layer 2: Grafted Copolymer Adhesive.
This acts as the “bridge.” It chemically bonds the epoxy layer to the top-coat polyethylene, ensuring the system remains intact under high shear stress and varying soil temperatures.
- Layer 3: High-Density Polyethylene (HDPE).
The outer shield. It provides mechanical protection against impact, abrasion, and UV radiation during handling and installation in the field.
3LPE Performance Specifications (Technical Data)
For procurement managers comparing suppliers, the following technical benchmarks are non-negotiable. At JS Steel, our 3LPE coated pipes typically meet or exceed DIN 30670 and ISO 21809-1 standards:
| Property | Test Method | Typical Requirement |
| Peel Strength (20°C) | DIN 30670 | ≥ 100 N/cm |
| Cathodic Disbondment (28 days) | ASTM G8 | < 7 mm |
| Indentation Resistance (23°C) | DIN 30670 | < 0.2 mm |
| Holiday Detection | NACE SP0188 | No breakdown at 25kV |
3LPE vs. FBE Coating Pipe: Which One Should You Source?
A common question from our midstream clients is whether to opt for Single-Layer FBE or 3LPE.
- Choose FBE coated pipe for internal linings or where soil conditions are stable and installation risks are low.
- Choose 3LPE for long-distance cross-country pipelines, rocky terrains, or marshy environments. 3LPE offers 10x the impact resistance of standard FBE, significantly reducing the cost of “holiday” repairs on-site.
FAQ: What Global Buyers Ask About 3LPE Pipes
Q: Can 3LPE pipes be used for high-temperature service?
A: Standard 3LPE is rated for continuous operating temperatures up to 80°C. For higher temperatures (up to 110°C), we recommend 3LPP (3-Layer Polypropylene) coating.
Q: What pipe diameters can you coat?
A: Our facilities handle diameters from 2″ (60.3mm) up to 120″ (3048mm), covering both ERW and LSAW manufacturing lines.
