When constructing critical infrastructure, such as desalination plants, offshore oil rigs, or nuclear power stations, the choice between seamless, welded, and forged pipes is crucial. Each type offers distinct advantages and is suited to specific applications and environmental conditions. A thorough evaluation of numerous factors is essential to determine the optimal pipe for any given project.
Seamless Steel Pipe
Manufacturing:
The production of seamless pipes varies significantly depending on the required diameter and the diameter-to-wall thickness ratio. Generally, the process begins with casting raw steel into a hot, solid billet. This billet is then elongated and either pushed or pulled over a mandrel, forming a hollow pipe. Subsequent extrusion through a die and mandrel further refines the pipe, increasing its inner diameter and reducing its outer diameter.
Application:
Seamless steel pipe is widely used for transporting fluids, including water, natural gas, wastewater, and air. Its robust nature also makes it indispensable in high-pressure, highly corrosive environments found in industries like oil & gas, power generation, and pharmaceuticals.
Advantages:
Superior Strength: The inherent lack of a seam eliminates potential weak points, allowing seamless pipe to typically withstand 20% more working pressure than welded pipes of the same material grade and size.
Enhanced Corrosion Resistance: Without a weld, fewer opportunities for impurities or defects can often occur along a welded joint, leading to superior corrosion resistance.
Reduced Testing: The absence of a weld naturally eliminates the need for weld integrity testing, streamlining the inspection process.
Welded Steel Pipe

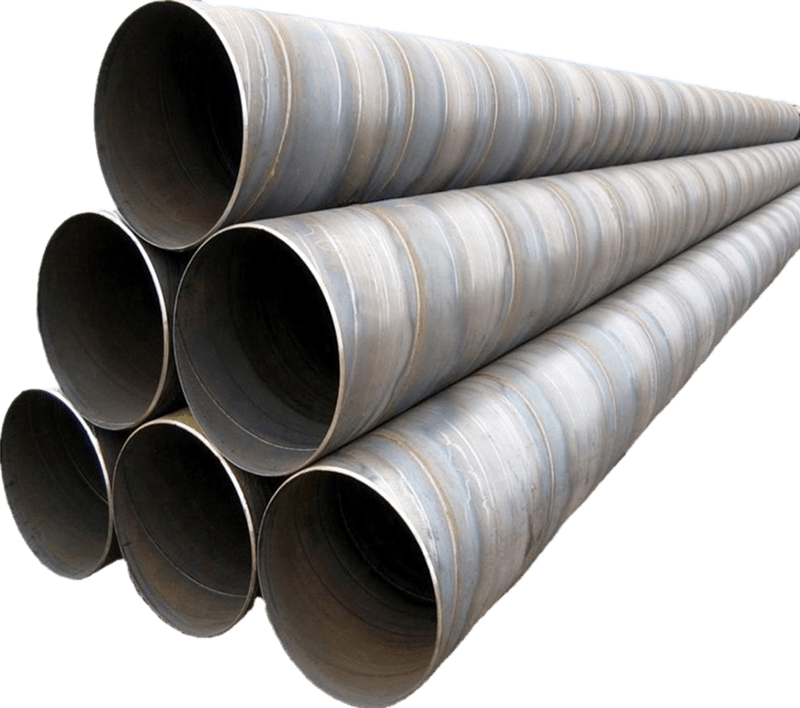

Welded pipes are categorized into three main types: ERW pipe, LSAW pipe, and SSAW pipe.
Manufacturing and Applications:
The manufacturing process for welded pipe begins with a steel coil being rolled to the desired thickness to create a flat strip or plate. This material is then formed into a tube, and the seam is welded in a controlled, chemically neutral environment. Austenitic steels are generally the most readily weldable, while ferritic steels are weldable in thinner sections. Duplex steels are now considered fully weldable but require more careful handling than austenitic steels.
Advantages:
Cost-Effectiveness: A significant advantage of welded pipe is its lower cost compared to other pipe types, making it a more accessible and readily available option.
Consistent Wall Thickness: Due to its manufacturing process, starting with a flat sheet of steel, welded pipes typically exhibit more consistent wall thickness than seamless pipes.
Smoother Surface Quality: The absence of an extrusion process often results in a smoother surface finish for welded pipes compared to seamless pipes.
Faster Procurement: The simpler manufacturing process of welded pipe contributes to shorter procurement lead times.
Forged Steel Pipe
Steel forging is a metal forming technique that shapes metal through intense compressive force, extreme heat, and pressure.
Manufacturing:
The production of a forged pipe involves placing a piece of steel (which could be 6% Moly, Super Duplex, Duplex, Stainless Steel, or Nickel Alloy) between an upper and lower die. Heat and pressure mold the steel into the desired shape, followed by a machining process to meet all necessary specifications. This intricate manufacturing process generally leads to higher cost implications for forged pipes.
Applications
The numerous benefits of forged pipe lend themselves to diverse applications across sectors such as oil, gas, hydraulic machinery, fertilization, and chemical industries. The absence of a seam or welding point allows forged steel to safely contain potentially harmful or corrosive substances and their fumes, making it suitable for many heavy industrial uses.
Advantages:
Exceptional Strength: Forging refines the steel’s grain structure, aligning the grain flows and resulting in a highly strong and reliable end-product with significant impact resistance.
Enhanced Longevity: The forging process eliminates the potential for porosity, shrinkage, cavities, and cold-pour issues, contributing to a longer lifespan.
Economical Production: Forging is generally considered an economical process due to minimal material waste.
Versatile Flexibility: The steel forging process offers considerable flexibility, enabling the production of pipes in a wide range of sizes.
Rayoung is the industry steel pipe supplier and exporter in China. Regardless of your specific requirements, we can provide seamless, welded, and forged pipes in all sizes to meet your project needs.
